Fire

Security

ChubbSafes

DPC 320

Cabinet Fireproof tested 2 hours
Insurance Cover: £1000 Cash
Valuables: £10000
Fire Time: 120 Minutes
Lock Type: Certified Key (inc.2 keys)
Weight/Size: 395 (KG) / 1559 (H) 759 (W) 605 (D)
Fixings: To Floor
AvailabilityIn stock
SKU
DPC-320
MADE TO ORDER: 16-20 WEEKS LEAD TIME
Special Price £2,079.00 £1,732.50 Regular Price £2,310.00

Transparent Pricing

No extra charges

Free indoor delivery for peace of mind.

  • Weekday Services (9am - 4.30pm)
  • Indoor Delivery Service - Installation FREE
  • (please allow 5 - 10 working days for installation)

Summary

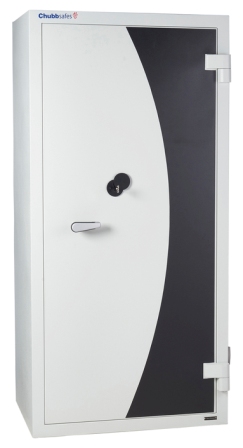

ChubbSafes large Document Protection Cabinet offers maximum fire resistance, two hours fire tested for document protection. Chubbs large DPC is ideal for office or business used by Banks, insurance and Legal PLC's. Can be customised with various internal fittings. Base fixing.

Details

Protects (from fire damage)
Documents (Paper)
Finish
Light Grey (RAL 7035) with Dark Grey facia (RAL 7016)
Popular for
Office Safes
Warranty
2 Year Warranty

Fittings Included

Storage
Lever Arch (75mm) Capacity : 28
Shelving
3 x Filing (A4 suspension files) Shelves

Dimensions & Weights

External Dimensions (mm)
1559 (h) x 759 (w) x 605 (d)
Internal Dimensions (mm)
1400 (h) x 600 (w) x 382 (d)
Volume
321 Litres
Weight
395 Kg
* external depth does not include the 54mm lock, handle or hinge projection
Fixed shelf supports reduce the internal width by 10mm

Protection

Resistance
Fire & Burglary
Fire
Fire Tested - 2 hour fire endurance

Construction

Door
Composite 110mm total thickness
Body
80mm composite
Bolt Work
28mm diameter locking bolts
Design
Additional security protection – facility to install to floor.
Automatic mechanism to ensure bolts are in place and able to resist fire whenever the door is closed.
Locking
Certified double bitted key lock (inc.2 keys)

Features We Love

Maximum fire protection safeguarding items from fire damage
Wide range of fittings to suit any storage requirements

Size Ratio

180cm
1559mm
759mm

Key Lock Details

Key Type
8 lever double bitted
Security Certification
EN 1300 Class A
Make
Mauer

Certifications

Fire Certificate
UL 72 Class 350 2hr Protection (Paper; Documents)
Fire
Tested by UL

Testing Criteria

Fire / Documents Testing

The longer the period in minutes, the greater the fire resistance offered.
The critical temperature before paper documents combust is 177°C.
Choosing a safe with a fire test certificate from a recognised testing authority ensures you're getting the best fire protection for your valuables.

UL 72 Class 350 2 hr Protection (Paper; Documents)

UL (Underwriter's Laboratories) - 72 Class 350 Paper fire standards.
Products undergo an extensive two-step fire testing process.

STEP 1   The product is placed in a furnace and heated to a temperature of 1000°C. The furnace is switched off after 120 mins. The unit remains in the furnace until the temperature returns to ambient levels (a period known as “soak out”). Assessing product’s during this cool down is essential since internal temperatures can peak up to 6 to 8 hours after a fire has been extinguished. Both during furnace heating and the subsequent cooling period, the recorded internal temperature must not have exceeded 177°C (or 350°F).

STEP 2   Fire explosion or Shock test. To simulate rapid heating, the cabinet is inserted into a preheated furnace. The stresses and strains created by such rapid heating can easily cause a poorly constructed unit to fail. At no point are internal temperatures allowed to exceed 177°C (or 350°F).



The following options can be selected at checkout.

Electronic Lock 2 user code

Upgrade to a battery powered electronic keypad with 2 programmable pin codes.

Digital lock (2 codes) : £334.80 (£279.00 ex VAT)

Adjustable filing Shelf

Organise the safe interior and maximise the use of your storage space with an extra adjustable filing shelf (designed to accept A4 suspension files).

1 x Shelf : £32.40 (£27.00 ex VAT)
2 x Shelves : £64.80 (£54.00 ex VAT)

Pull out filing cradle

Pull out Filing Frame

Organise the safe interior and maximise the use of your storage space with a Pull-out Filing Cradle, for use with suspension files.

1 x Filing Frame : £59.40 (£49.50 ex VAT)
2 x Filing Frame : £118.80 (£99.00 ex VAT)
3 x Filing Frame : £178.20 (£148.50 ex VAT)

Lockable Drawer

Fitted Lockable Drawer

Improve the interior and add extra security with a lockable drawer. (complete with 2 keys)

Yes : £151.20 (£126.00 ex VAT)

Lockable Cupboard

Fitted Lockable Cupboard

Improve the interior and add extra security with a lockable cupboard. (Complete with 2 keys)

Yes : £264.60 (£220.50 ex VAT)
